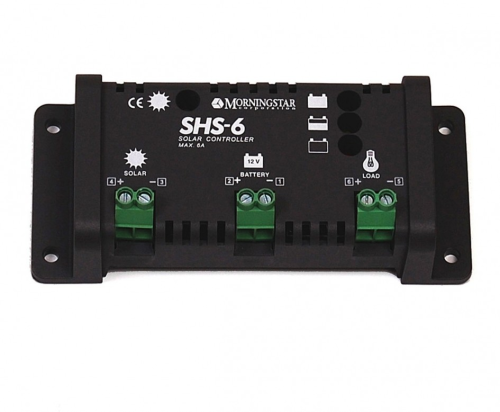

REGSS-6A-12V Solar Charging Regulator 6A
Extreme High Reliability
The right fit for any solar application
weather applications water applications energy applications gas flux and turbulence applications infrastructure applications soil applications

Overview

The REGSS-6A-12V allows you to connect a solar panel 12Vdc and a battery 12Vdv to prevent an overcharge the battery.


Read More

Benefits and Features

  • Reduces Cost of Battery Replacements - the low voltage disconnect will increase battery life.
  • Provides useful information
  • High Reliability - low failure rate and will last a long time

Images

Detailed Description

Supply voltage from the solar panel is connected to the Solar Cell terminal. Regulated voltage to charge the data logger’s sealed rechargeable power supply are sourced from the Battery terminal.

Compatibility

Datalogger Considerations

Compatible Contemporary Dataloggers

CR200 Series CR800/CR850 CR1000 CR3000 CR5000 CR7X CR9000X

Compatible Retired Dataloggers

CR500 CR510 CR10 CR10X 21X CR23X CR9000


Note:

Mounting holes are compatible with an imperial enclosure only

Specifications

  • Regulation Point: 14.3 Volts
  • Low voltage Disconnect: 11.5 Volts
  • Low voltage Reconnect: 12.6 Volts
  • Type of Charging: Series PWM, 4 Stage - Bult, PWM, Boost and Float Temperature compensated charging
  • Terminals: Fore wire sizes to 4mm2
  • Dimensions: 15.1 x 6.6 x 3.6cm
  • Weight: 113g
  • Self-consumption: 8 mA maximum
  • Temperature: -25°C to +50°C
  • Humidity: 100% non-condensing
  • Enclosure: IP 22
